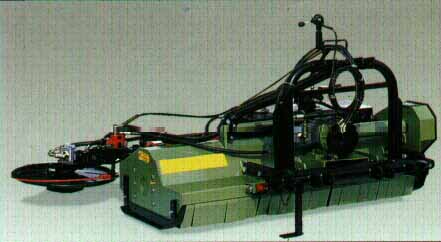

Shredder Image

Blades and Specifications for the Mower with "Mow-Around" and hydraulic sensor for dodging plants.

Measurements listed below.

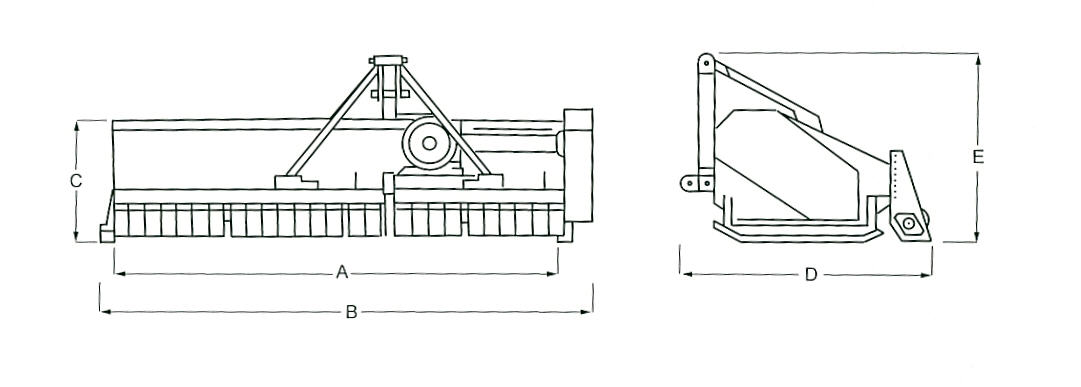

Flail Mower Specifications and Measurements

  WEIGHT MIN. HP CUTTING OVERALL HEIGHT LENGTH HEIGHT NUMBER NUMBER
MODEL (LBS) TRACTOR WIDTH (A) WIDTH (B) C D E HAMMERS BLADES

TSC 85 550 20 33 36 18 53 35 8 24
TSC 100 638 25 39 45 18 53 35 8 24
TSC 125 770 30 49 55 18 53 35 12 36
TSC 150 946 40 59 66 18 53 40 12 36
TSC 175 1056 45 68 75 18 53 40 16 48
TSC 200 1166 50 78 85 18 53 40 20 60
TSC 225 1276 55 88 94 18 53 40 20 60
TSC 240 1408 60 94 101 18 53 40 20 60
TSC 260 1562 70 101 109 18 53 40 24 72

(all measurements in inches)

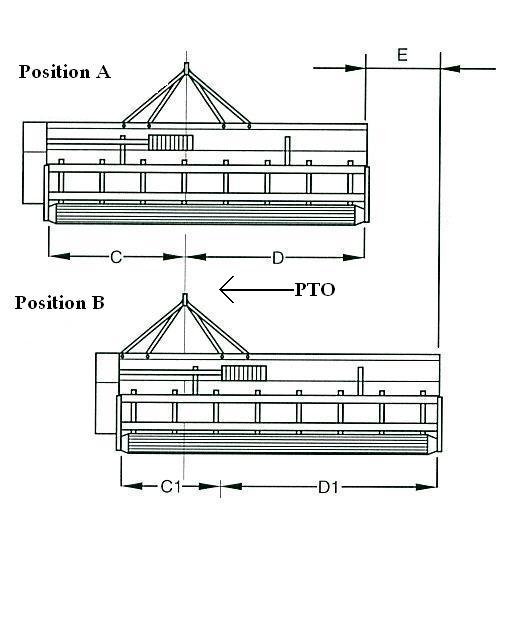

                    WITH STANDARD HITCH
        POSITION A    POSTION B SHIFT
MODEL C D C1 D1 E
TSC 85 16 17 - - -
TSC 100 20 20 - - -
TSC 125 23 25 16 32 7
TSC 150 30 29 19 39 11
TSC 175 30 38 19 49 11
TSC 200 30 48 20 59 11
TSC 225 39 49 25 62 11
TSC 240 55 55 44 65 11
         WITH HYDRAULIC LATERAL SHIFT
        POSITION A    POSTION B SHIFT
MODEL C D C1 D1 E
TSC 125 24 25 14 35 10
TSC 150 29 29 6 53 30
TSC 175 35 33 4 64 31
TSC 200 35 43 4 74 31
TSC 225 45 43 14 74 31
TSC 240 43 51 12 82 31

Blades for the Mower

Blade 1 Image

Blade 2 Image

Blade 3 Image

Blade 4 Image

Blades at 45°.

Blades for Finish Cut

Hammer.

Welded bar.
