FPP Harrow for Vineyards & Orchards

For FPP Tiller measurements, weights and specs, click here.

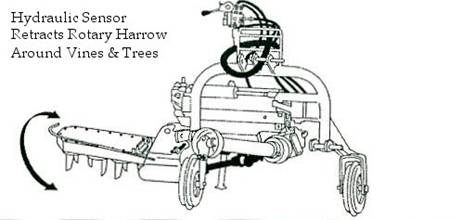

BASE MACHINE: Rotary harrow head with hydraulic sensor retraction and hydraulic height inclination; manual emergency recall lever; 1100mm splined PTO with friction disk powers head; the FPP series is designed for rows from 6.5 to 11 feet wide (2 to 3.4 meters) with at least 23 inches(60cm) between the plants and recommended for soil with rocks and stones; harrow head slides in-and-out between plants

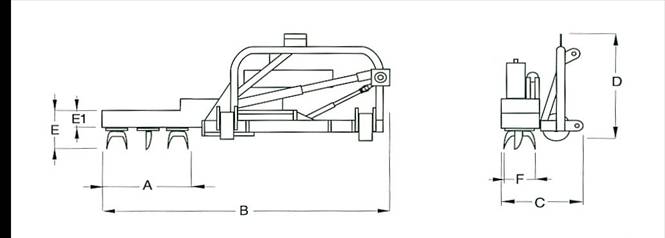

									HARROW	HARROW
	MIN. HP	WORKING	OVERALL	LENGTH	HEIGHT	NUMBER	NUMBER	HARROW	HEIGHT	HEIGHT
FPP MODEL	TRACTOR	WIDTH (A)	WIDTH (B)	(C)	(D)	ROTORS	BLADES	WIDTH (F)	(E)	(E1)

FPP 40 ERS	15	16	37	43	43	2	4	9	14	7
FPP 40 ER	15	16	49	43	43	2	4	9	14	7
FPP 60 ERS	15	23	43	43	43	3	6	9	14	7
FPP 60 ER	20	23	55	43	43	3	6	9	14	7
FPP 60 ERL	25	23	74	43	43	3	6	9	14	7
FPP 80 ER	35	31	64	43	43	4	8	9	14	7
FPP 80 ERL	35	31	84	43	43	4	8	9	14	7

***all measurements in inches***

			MINIMUM	MAXIMUM
	WEIGHT	MIN. ROW	EXTENSION	EXTENSION
FPP MODEL	(LBS)	WIDTH (H)	(L)	(M)

FPP 40 ERS	836	62	27	31
FPP 40 ER	880	70	35	41
FPP 60 ERS	880	62	31	37
FPP 60 ER	924	78	43	51
FPP 60 ERL	968	96	57	64
FPP 80 ER	1056	94	49	59
FPP 80 ERL	1100	109	64	72

***all measurements in inches from tractor mid-point***
