FPF Multipurpose In-Row Cultivator for Rows 98-129 inches wide

To see other before and after photos of a vineyard cultivated by the FPF, please click here.

This is one of several machines dedicated to working the soil between trees and vines. By varying the attachments, you can till, disk or mound the soil around a plant. The hydraulic sensor to dodge around plants is standard on all models. As shown below, these machines have working widths ranging from 50 to 116 cm (or 20 to 45 in), and can work in rows from 98 to 129 inches wide.  Optional features are listed at the bottom of this page.  For work in rows from 66 to 84 inches wide, please click here.  For more information on the FPF equipped with the rotary harrow head, please click here.



                  TILLER TILLER
                  HEAD ROTOR

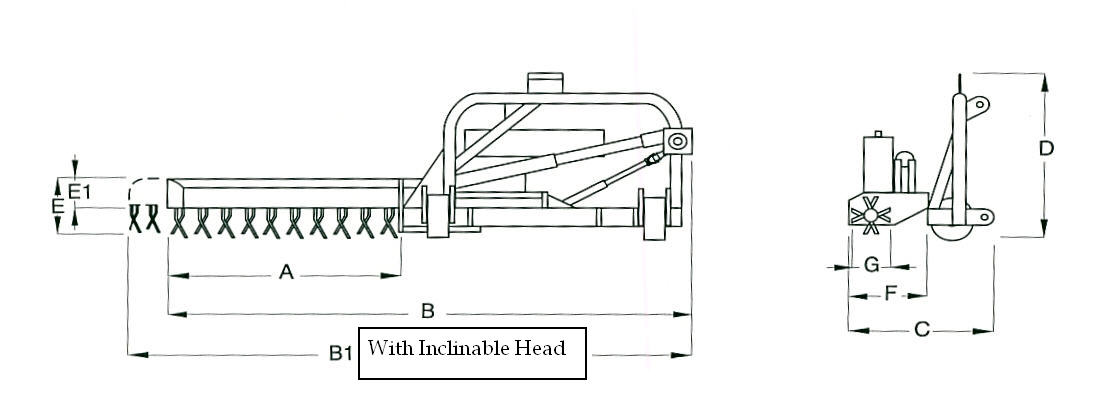

  MIN. HP WORKING OVERALL INCLINED LENGTH HEIGHT NUMBER NUMBER HEIGHT  DIAMTR.
FPF MODEL TRACTOR WIDTH (A) WIDTH (B) WIDTH (B1) (C) (D) BLADES DISKS (E) (G)

FPF 50-MF 20 20 76 80 57 43 16 N.A. 11 9
FPF 60-MF 20 23 80 84 57 43 20 N.A. 11 9
FPF 55 35 21 78 82 57 43 16 4 14 12
FPF 67 40 26 83 87 57 43 20 5 14 12
FPF 80 40 31 87 91 57 43 24 6 14 12
FPF 92 45 36 92 96 57 43 28 7 14 12
FPF 104 50 41 97 101 57 43 32 N.A. 14 12
FPF 116 55 45 101 105 57 43 36 N.A. 14 12


(ALL MEASUREMENTS IN INCHES)

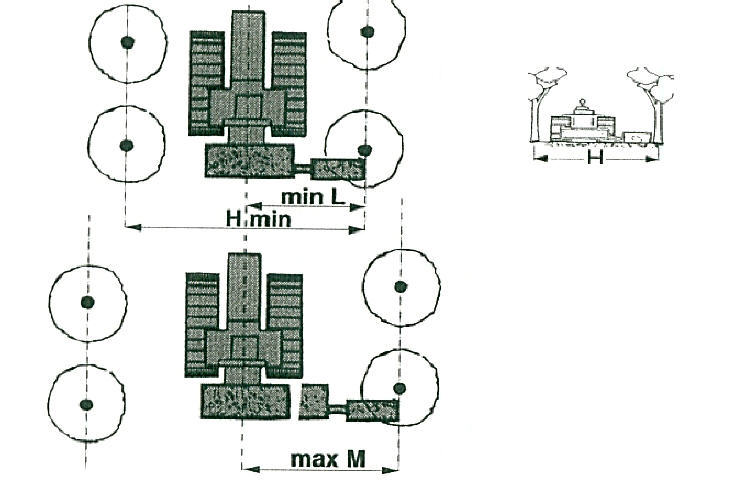

      MINIMUM MAXIMUM  INCLINEDHEAD
  WEIGHT MIN. ROW EXTENSION EXTENSION MIN. EX. MAX. EX.
FPF MODEL (LBS) WIDTH (H) (L) (M) (L1) (M1)

FPF 50-MF 880 98 62 76 62 76
FPF 60-MF 902 101 66 80 70 84
FPF 55 946 99 66 80 68 82
FPF 67 968 103 70 84 74 88
FPF 80 990 109 76 90 76 94
FPF 92 1012 115 82 96 86 99
FPF 104 1034 121 88 101 92 105
FPF 116 1056 129 94 117 98 119

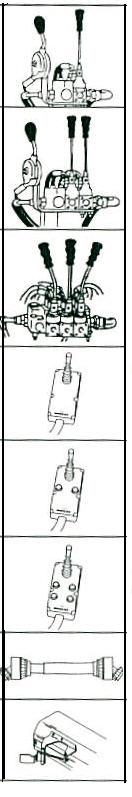

OPTIONS

Disk Kit FPF 42
Disk Kit FPF 55
Disk Kit FPF 67
Disk Kit FPF 80
Hydraulic Cylinders
  for Emergency Retraction
  for Front-Back Inclination
Independent Hydraulic Controls
 1-Lever Unit (tiller head height)
 2-Lever  Unit (tiller height & Inclination)
 3-Lever  Unit (tiller height, Inclination & Emer. Retraction)
Joystick Electric-over-Hydraulic Controls
  (for especially young or delicate plants)
 Joystick Emergency Emergency Retraction
 Joystick Retraction, Push-Button Inclination
 Joystick Retraction, Push-Button Inclination & Height

PTO with overrunning clutch for rocky ground

Trunk-cleaning Flap
